Model Whirlpool F9027^0 – Common Parts & Diagrams
08 - SECTION

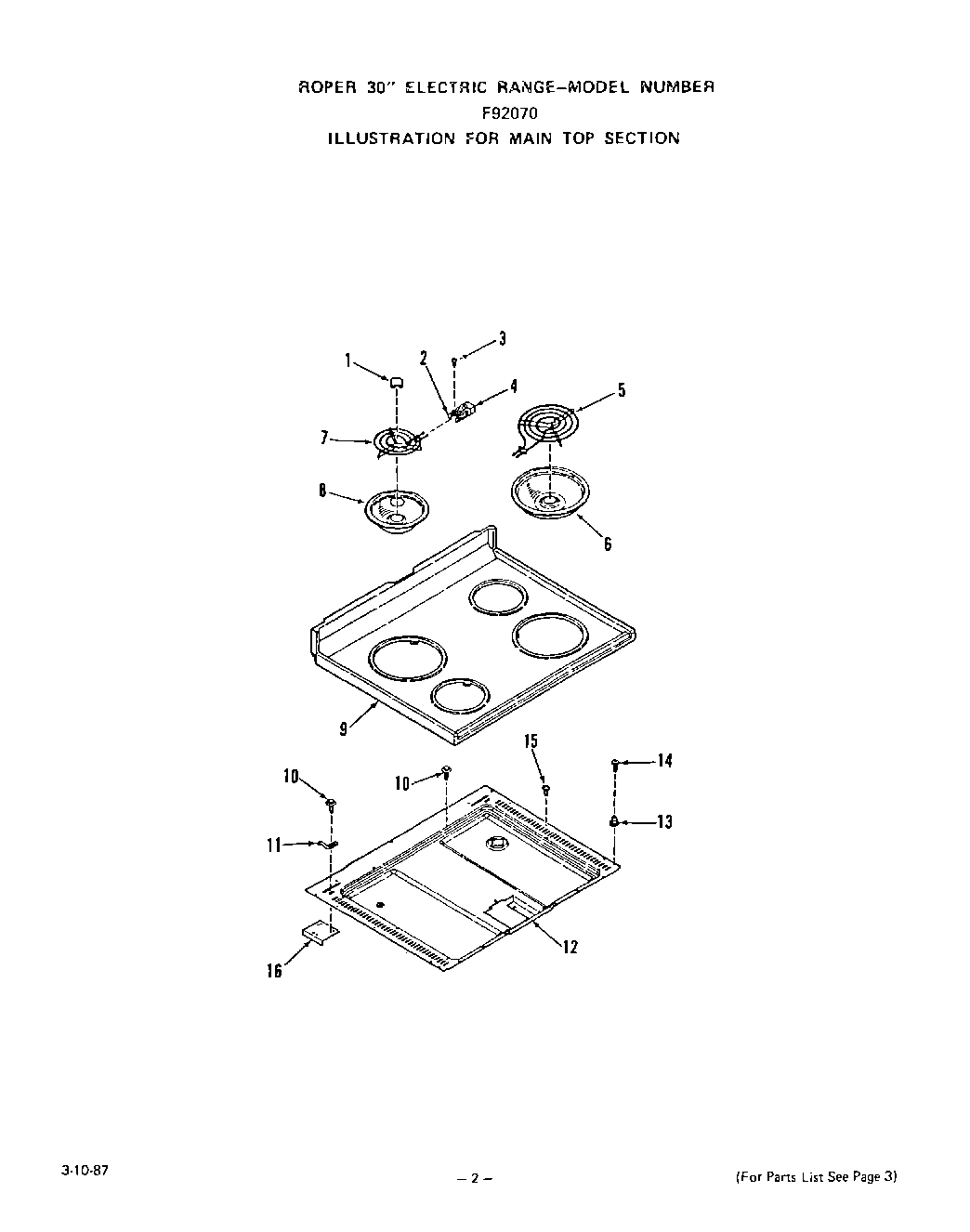

02 - MAIN TOP

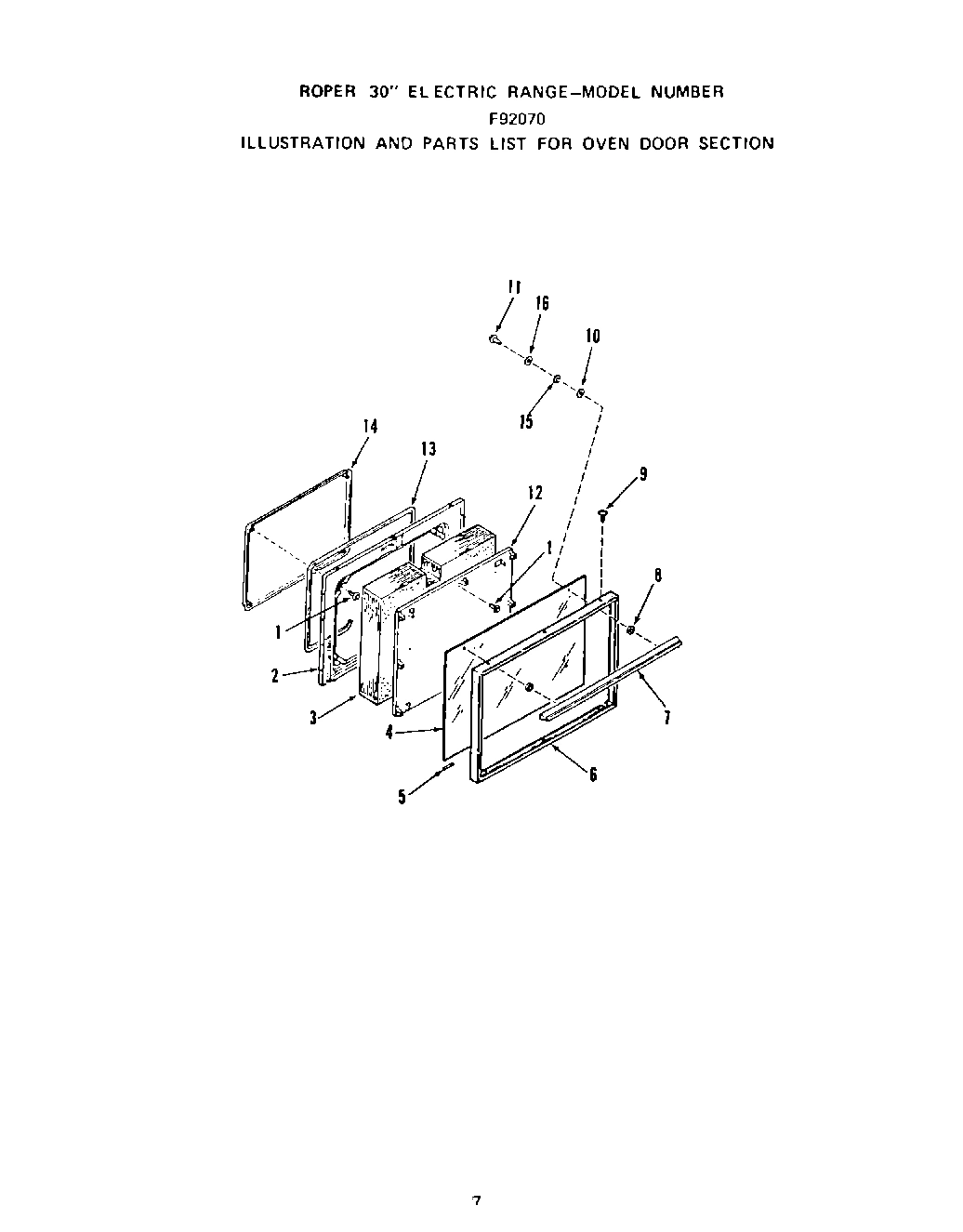

05 - OVEN DOOR
06 - WIRE HARNESS AND COMPONENTS

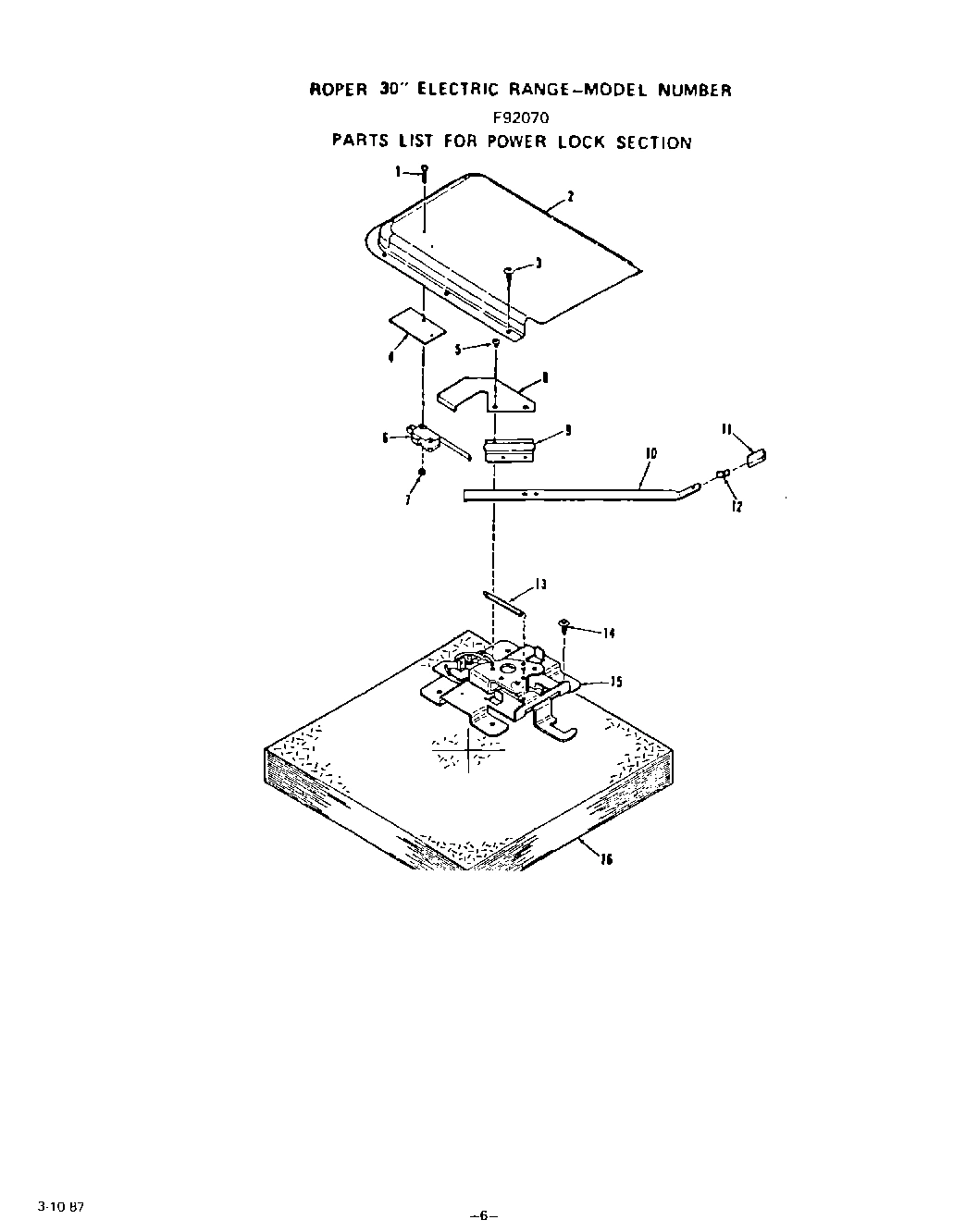

04 - POWER LOCK
01 - BACKGUARD , LIT/OPTIONAL

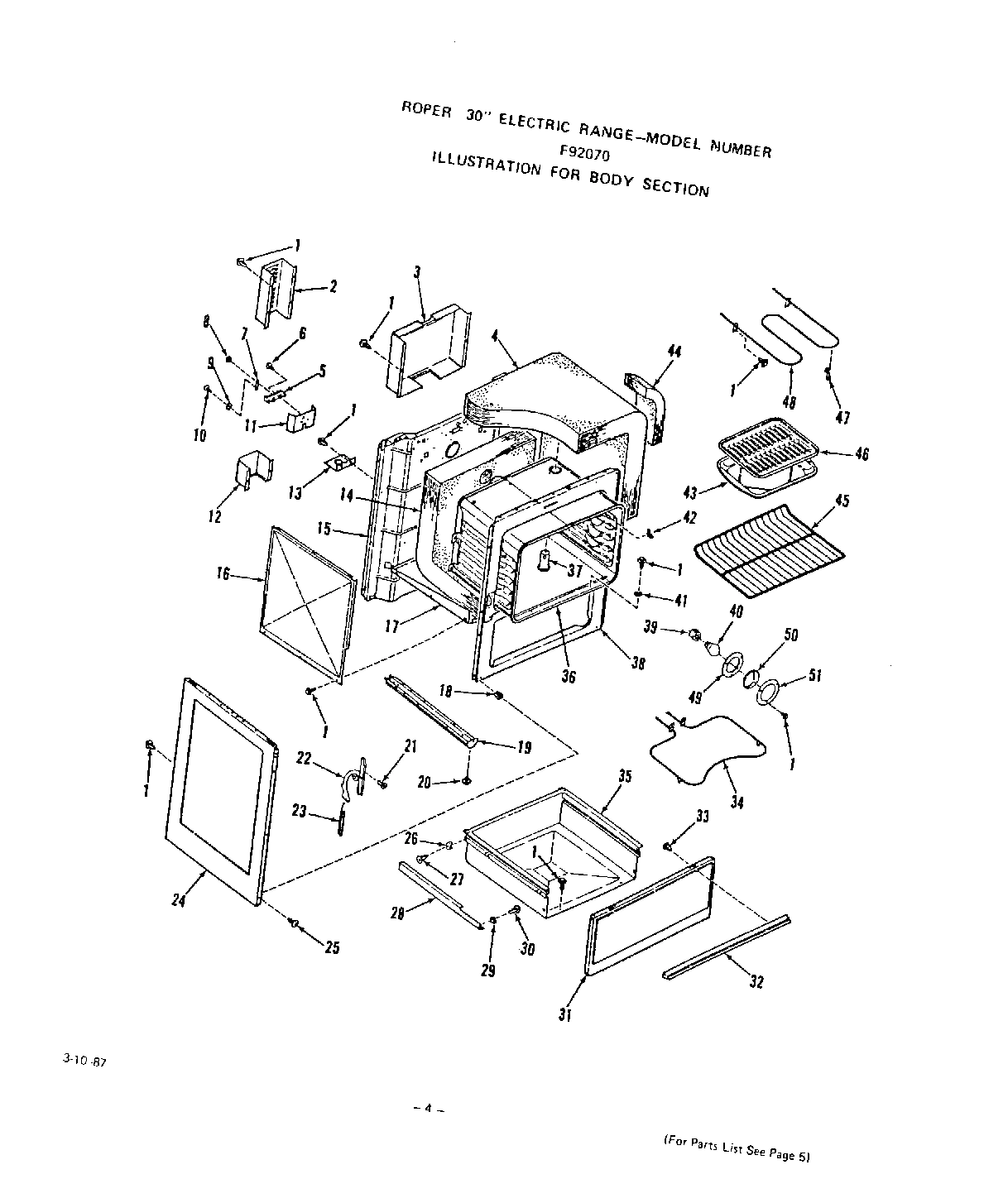

03 - BODY
Common parts from model Whirlpool F9027^0
1
Screw 4-40 x 11/16`` WPL 335942 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Cover-Lock WPL 335934 Contact Us For Availability
2
Lining WPL 331624 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Insulation WPL 335782 Contact Us For Availability
3
Wire Shield WPL 333956 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
4
Backguard Body WPL 334199 Contact Us For Availability
4
Insulator-Switch WPL 329171 Contact Us For Availability
4
Glass-Outer WPL 326000 Contact Us For Availability
4
Insulation-Oven Wrap WPL 326040 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
5
Right WPL 334337 Contact Us For Availability
5
Left WPL 334338 Contact Us For Availability
5
Backguard Support WPL ARI57095A6 Contact Us For Availability
5
Screw (8-32x1/8``) WPL 97411 Contact Us For Availability
5
Cushion WPL 112370 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
6
Left WPL 335074 Contact Us For Availability
6
Right WPL 335075 Contact Us For Availability
6
End Cap WPL ARI57096A7 Contact Us For Availability
6
Micro Switch WPL 334078 Contact Us For Availability
6
Frame WPL 332065 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
8`` Burner Bowl WPL 292975 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 336152 Contact Us For Availability
7
Nut-Hex 4-40 WPL 306638 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
8
Thermostat WPL 334557 Contact Us For Availability
8
Switch Lever WPL 335929 Contact Us For Availability
8
G.M. Hex Nut 10-32 WPL 97816 Contact Us For Availability
8
6`` Burner Bowl WPL 292974 Contact Us For Availability
9
Selector Switch WPL 334622 Contact Us For Availability
9
Retainer-Latch Handle WPL 333787 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
White WPL 332047 Contact Us For Availability
9
Chrome WPL 332048 Contact Us For Availability
9
Almond WPL 332251 Contact Us For Availability
9
Main Top WPL ARI57099A7 Contact Us For Availability
10
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
10
Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.) WPL 334887 Contact Us For Availability
10
Handle-Latch WPL 333792 Contact Us For Availability
10
Washer-Fiber WPL 333014 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
11
Infinite Switch (Rt. Front) WPL 334888 Contact Us For Availability
11
Knob-Lock WPL 335738 Contact Us For Availability
11
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
Left WPL 333859 Contact Us For Availability
11
Right WPL 334089 Contact Us For Availability
11
Hinge-Main Top WPL ARI57100A8 Contact Us For Availability
12
Indicator Light WPL 331716 Contact Us For Availability
12
Clip-Knob WPL 328474 Contact Us For Availability
12
Retainer-Insulation WPL 325987 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
12
Burner Box Bottom WPL 333171 Contact Us For Availability
13
Indicator Light WPL 331717 Contact Us For Availability
13
Spring-Lock Handle WPL 313075 Contact Us For Availability
13
Gasket WPL 292244 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Strike WPL 333892 Contact Us For Availability
14
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
14
Plug WPL 331561 Contact Us For Availability
14
Insulation-Oven Back WPL 326049 Contact Us For Availability
14
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
15
Thermostat WPL 334990 Contact Us For Availability
15
Screw 10-16x1/2`` WPL 335967 Contact Us For Availability
15
Latch Asm. WPL 333781 Contact Us For Availability
15
Spacer-Glass WPL 333015 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
16
Selector Knob WPL 334989 Contact Us For Availability
16
Insulation-Lock WPL 335944 Contact Us For Availability
16
Washer WPL 99279 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 328984 Contact Us For Availability
16
Reinforcement Plate WPL 335823 Contact Us For Availability
17
Switch WPL 334649 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
18
Infinite Knob WPL 334988 Contact Us For Availability
19
Lens-Indicator Light WPL 331705 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
20
Chrome WPL 335401 Contact Us For Availability
20
White WPL 335548 Contact Us For Availability
20
Almond WPL 335549 Contact Us For Availability
20
Control Panel WPL ARI57097A2 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
21
Clock Bracket WPL 334200 Contact Us For Availability
21
Screw WPL 331704 Contact Us For Availability
22
Clock Knob WPL 334045 Contact Us For Availability
22
Right WPL 334632 Contact Us For Availability
22
Left WPL 334633 Contact Us For Availability
22
Hinge-Oven Door WPL ARI57101A6 Contact Us For Availability
23
Clock Glass WPL 323174 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334571 Contact Us For Availability
24
60 Cycle WPL 334169 Contact Us For Availability
24
50 Cycle WPL 335249 Contact Us For Availability
24
Clock WPL ARI57098A8 Contact Us For Availability
24
White WPL 333303 Contact Us For Availability
24
Almond WPL 333307 Contact Us For Availability
24
Chrome WPL 333308 Contact Us For Availability
24
Body Side (Lt. or Rt.) WPL ARI57102A4 Contact Us For Availability
25
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
26
Slide Block-Rear (Lt. or Rt.) WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer (Lt. or Rt.) WPL 311441 Contact Us For Availability
29
Slide Block-Front (Lt. or Rt.) WPL 281914 Contact Us For Availability
30
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
31
White WPL 332121 Contact Us For Availability
31
Almond WPL 332125 Contact Us For Availability
31
Chrome WPL 332126 Contact Us For Availability
31
Front Panel-Storage WPL ARI57103A9 Contact Us For Availability
32
Handle WPL 334848 Contact Us For Availability
33
Screw 10-32x1/2`` WPL 295850 Contact Us For Availability
34
240 Volt WPL 326365 Contact Us For Availability
34
208 Volt WPL 326366 Contact Us For Availability
34
Bake Element WPL ARI57104A9 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 333779 Contact Us For Availability
37
Vent Tube WPL 333802 Contact Us For Availability
38
Front Frame WPL 314062 Contact Us For Availability
39
Bulb Holder WPL 87883 Contact Us For Availability
40
Oven Lamp WPL 111257 Contact Us For Availability
41
Washer WPL 21067 Contact Us For Availability
42
Clip-Thermostat Bulb (2 Req) WPL 335535 Contact Us For Availability
43
Broiler Pan WPL 331592 Contact Us For Availability
44
Insulation - Top & Sides (Front) WPL 316951 Contact Us For Availability
45
Oven Rack WPL 326068 Contact Us For Availability
46
Broiler Pan Grid WPL 326297 Contact Us For Availability
47
Support-Broil Element WPL 334565 Contact Us For Availability
48
240 Volt WPL 334368 Contact Us For Availability
48
208 Volt WPL 334369 Contact Us For Availability
48
Broil Element WPL ARI57105A8 Contact Us For Availability
49
Gasket-Lens WPL 229371 Contact Us For Availability
50
Lens-Oven Bulb WPL 114989 Contact Us For Availability
51
Retainer WPL 229392 Contact Us For Availability
× ![]()
